Generate Zoned Rectangle

This example shows how to make use of gFunctionDatabase.coordinate_generator.ZonedRectangle() to create a series of rectangles with an outer perimeter (fixed spacing) base case of 7x12.

../../_images/ZRect.gif

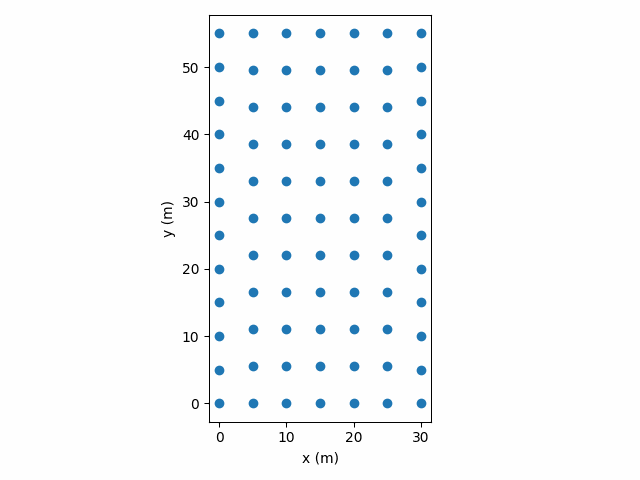

Fig. 6 A gif of the systematic reduction of rows or columns for a zoned rectangle - whichever one will have the most uniform interior spacing. Ends with 1 borhole in center of field.

The files are stored in a key: value dictionary. The key for zoned rectangles is created in the function gFunctionDatabase.coordinate_generator.ZonedRectangle.hash_key().

Table 4 The Nix and Niy values that are created, note that 5x10 interior would make the rectangle a uniform spaced field and is not included in the zoned rectangular library

Nix

5

4

4

4

3

3

3

2

2

1

1

1

1

Niy

9

9

8

7

7

6

5

5

4

4

3

2

1

Source Code

 1# Jack C. Cook
 2# Saturday, February 6, 2021
 3
 4import gFunctionDatabase as gfl
 5from natsort import natsorted
 6from PIL import Image
 7import os
 8
 9
10def main():
11    # Zoned Rectangle example: 7x12 field
12    # ------- Inputs --------
13    Nx = 7  # number of boreholes in the x-direction
14    Ny = 12  # number of boreholes in the y-direction
15    B = 5  # uniform spacing around outer perimeter
16    # -----------------------
17    z_rectangles = gfl.coordinate_generator.ZonedRectangle(Nx=Nx, Ny=Ny, B=B)
18    # Plot all of the borefields created, will be saved in /ZRect/Plots/
19    z_rectangles.visualize_coordinates('ZRect/Plots/', plot_ext='png')
20    print(z_rectangles.coordinates)
21
22    # Create csv files
23    z_rectangles.export_coordinates('ZRect/CSVs/')
24
25    # create a .gif from the plots we created
26    # Source: https://stackoverflow.com/a/57751793/11637415
27    # Note: Pillow wanted pngs for creating the gif
28    file_plot_names = os.listdir('ZRect/Plots/')
29    # we need to reverse the order to start from less zone to more zone, we'll use natsort to do it
30    # # sort the keys by order from largest to smallest
31    file_plot_names = natsorted(file_plot_names)
32    file_plot_names_sorted = list(reversed(file_plot_names))
33    print(file_plot_names_sorted)
34    frames = []
35    for file in file_plot_names_sorted:
36        frames.append(Image.open('ZRect/Plots/' + file))
37
38    frames[0].save(fp='ZRect/ZRect.gif', format='GIF', append_images=frames[0:],
39                   save_all=True, duration=800, loop=0)
40
41
42if __name__ == '__main__':
43    main()
